Product Overview
The JY ROBOT Gravity Flow Rack uses inclined roller tracks so that goods move along each lane under their own weight. It is designed for the organized storage and transfer of totes, bins, and components. This model features a Q235 carbon-steel frame and PVC rollers, with six levels and 24 independent flow lanes. Each lane is rated for 30 kg, and the complete rack is rated for 720 kg. The rollers use a spring-loaded pin mounting system for convenient on-site assembly, removal, and maintenance. Overall dimensions, number of levels, number of lanes, and load capacity can be adapted to project requirements.
Key Features
1. Gravity-Fed Flow for More Efficient Material Handling
Goods move along the inclined roller tracks under gravity, reducing manual carrying and retrieval operations. Ideal for line-side replenishment and warehouse picking.
2. Multi-Level, Multi-Lane Layout
T he six-level, 24-lane configuration improves storage density and material segregation within a limited footprint.
3. Modular Roller Construction
PVC rollers are secured with spring-loaded pins for quick installation and removal, simplifying assembly, cleaning, maintenance, and individual roller replacement.
4. Stable Load-Bearing Structure
The Q235 carbon- steel frame provides stable support, with a rated load of 30 kg per lane and 720 kg for the complete rack.

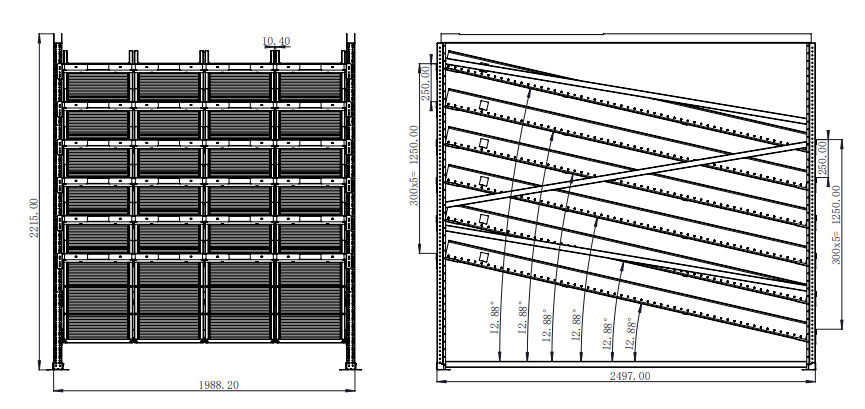

Product Drawings
Click to enlargeProduct Specifications
| Specification | Value |
| Product Name | 重力式流利货架 |
| English Name | Gravity Flow Rack |
| Product No | JY-CONVEYOR-00 |
| Overall Dimensions | W 1,988.2 × D 2,497 × H 2,215 mm |
| Configuration | 6 levels × 4 flow lanes per level |
| Total Number of Flow Lanes | 24 |
| Rated Load per Lane | 30 kg |
| Total Rated Load | 720kg |
| Flow-Lane Inclination | 12.88° |
| Frame Material | Q235 carbon steel |
| Roller Material | PVC |
| Roller Mounting | Spring-loaded pin system for quick installation and removal |
| Frame Color | Light gray |
| Roller Color | Dark gray |
| Dimension Unit | mm |
