AGV / AMR COMPONENTS
Four-Way Shuttle Core Components
Core components for four-way shuttle and warehouse robots, including gear units, servo motors and planetary gearboxes.

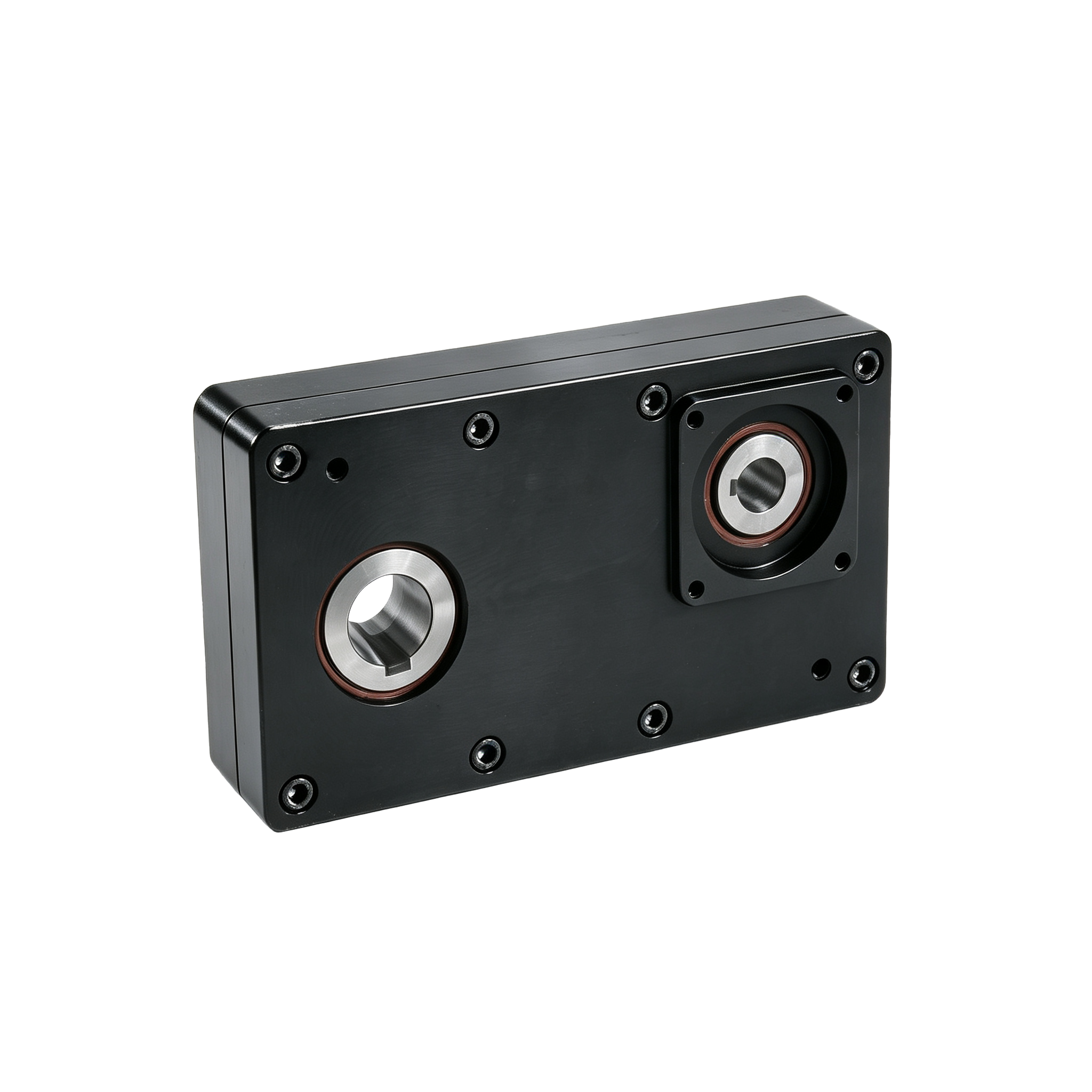

Gear Unit
HIGHLIGHT
Core components for AGV and AMR platforms, including drive modules, lifting modules, steering solutions and four-way shuttle components.
KEY SPECS
Rated Output Torque (Nm)35
Reduction Ratio (i)1:1
ltemvalue

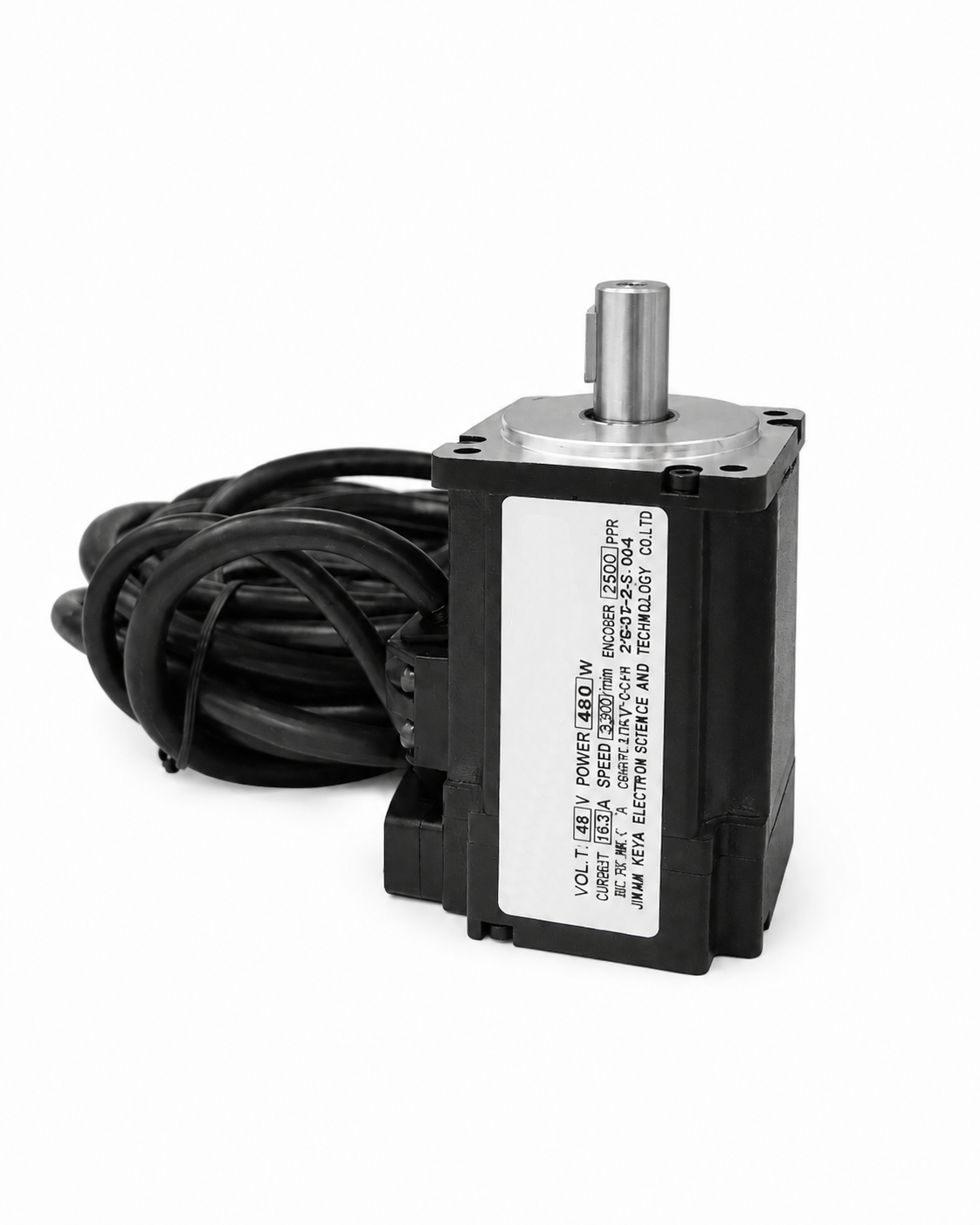

Servo Motor
HIGHLIGHT
Core components for AGV and AMR platforms, including drive modules, lifting modules, steering solutions and four-way shuttle components.
KEY SPECS
Rated Voltage48 VDC

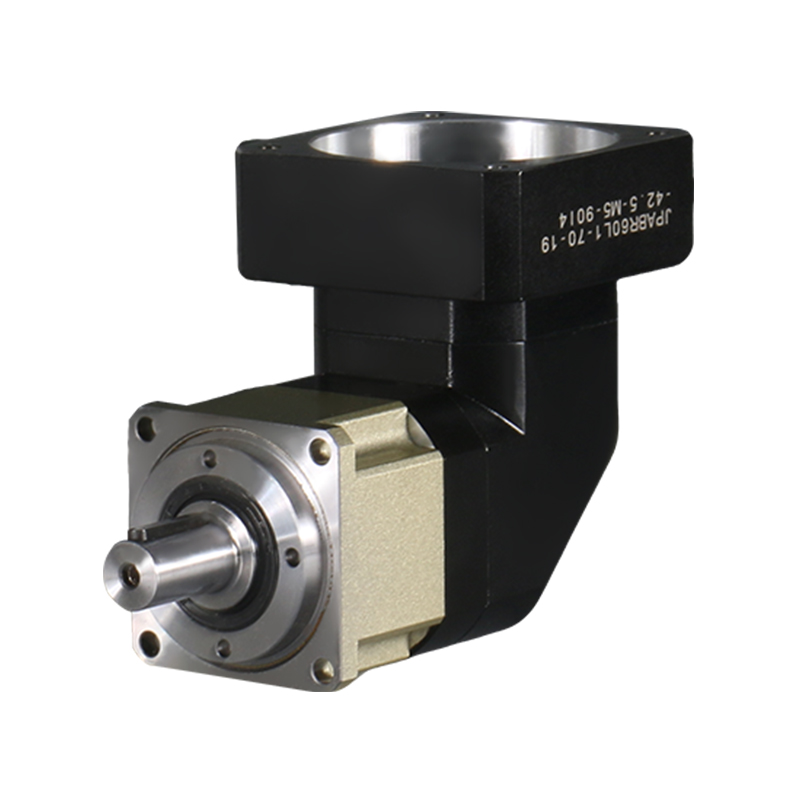

L-Type Planetary Gearbox
HIGHLIGHT
Core components for AGV and AMR platforms, including drive modules, lifting modules, steering solutions and four-way shuttle components.
KEY SPECS
Rated Output Torque42 N·m
Protection RatingIP65
Operating Temperature−10°C to +90°C

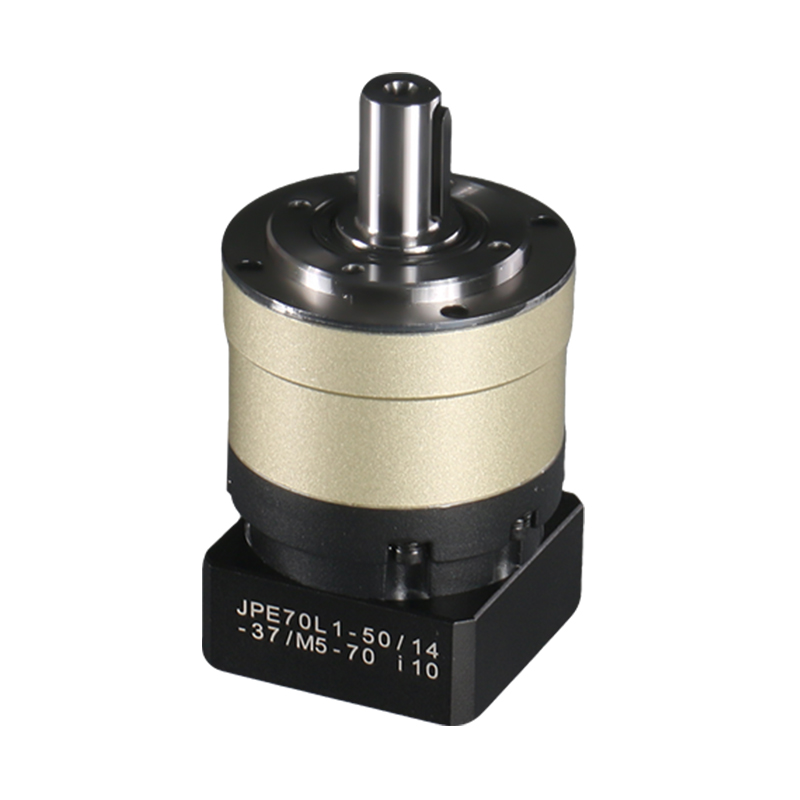

Inline Planetary Gearbox
HIGHLIGHT
Core components for AGV and AMR platforms, including drive modules, lifting modules, steering solutions and four-way shuttle components.
KEY SPECS
Rated Output Torque42 N·m
Protection RatingIP65
Operating Temperature−10°C to +90°C
Need help choosing a configuration?
Share your platform load, target speed, installation space and control requirements. JY Robot can help narrow down the suitable product family and model.
Standard products are supported with at least a 12-month warranty under normal use. Established platforms are designed for long-term replacement compatibility.
